Track Validation Window
The track validation functionality inspect the track for any missing - but required - track commands, and more.

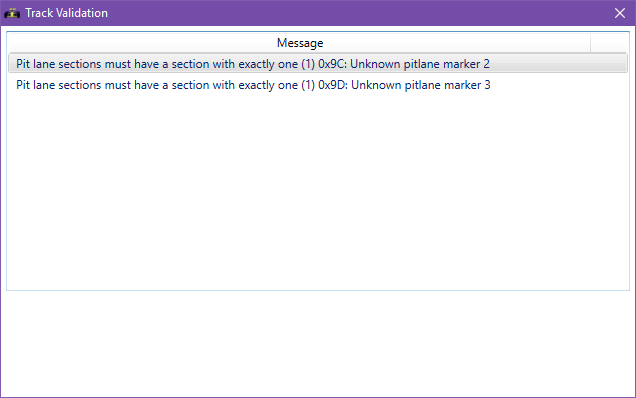

The window shows a list of all adjustments that need to be made.
Note however that it is fully possible that the track can still be fully playable despite having items appearing in this list. For example, there is a track command that appears at every single track that came with the game except the Phoenix circuit.
Items being validated
Track Commands
| Command | Validation |
|---|---|
| Command 0x86 (Connect start of pit lane to track) | This command must appear in exactly one (1) track section |
| Command 0x87 (Connect end of pit lane to track) | This command must appear in exactly one (1) track section |
| Command 0x96 (Pit lane start) | This command must appear in exactly one (1) pit lane section |
| Command 0x97 (Pit lane end) | This command must appear in exactly one (1) pit lane section |
| Command 0x9B (Unknown pitlane marker 1) | This command must appear in exactly one (1) pit lane section |
| Command 0x9C (Unknown pitlane marker 2) | This command must appear in exactly one (1) pit lane section |
| Command 0x9D (Unknown pitlane marker 3) | This command must appear in exactly one (1) pit lane section |
| Command 0x9E (Unknown pitlane marker 4) | This command must appear in exactly one (1) pit lane section |
| Command 0x9F (Pit lane fences start) | This command must appear in exactly one (1) pit lane section |
| Command 0xA0 (Pit lane fences end) | This command must appear in exactly one (1) pit lane section |
| Command 0xA1 (Pit lane entry, join right pit lane fence) | This command must appear in exactly one (1) track section |
| Command 0xA2 (Pit lane entry, join left pit lane fence) | This command must appear in exactly one (1) track section |
| Command 0xA3 (Pit lane exit, join right pit lane fence) | This command must appear in exactly one (1) track section |
| Command 0xA4 (Pit lane exit, join left pit lane fence) | This command must appear in exactly one (1) track section |
| Command 0xA8 (Section that triggers the chequered flag) | This command must appear in exactly one (1) track section |
