0x99 - Right Fence Height Change (Track Section Command)
This command changes the height of the track-side fence on the right-hand side.
The height indicates the height at the start of the track section where the command is placed. This means that the height change will occur in the track section previous to the one with this command.
Arguments
| Arg | Description | Common values |
|---|---|---|
| 0 | Unknown/unused? | Always 0 |
| 1 | Height modification | 1 to 8 |
Examples

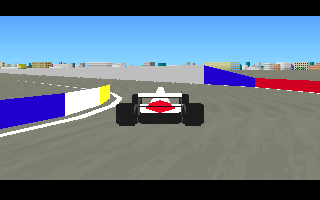

In this example, the right-hand side fence height is changed from 1 to 3.
Occurrences by track
| Location | US | BRA | SM | MON | CAN | MEX | FRA | GB | GER | HUN | BEL | ITA | POR | SPA | JAP | AUS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Track | 2 | 4 | 5 | 13 | 0 | 4 | 0 | 0 | 0 | 0 | 3 | 3 | 3 | 0 | 3 | 3 |
| Pit Lane | 2 | 2 | 3 | 3 | 2 | 3 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
